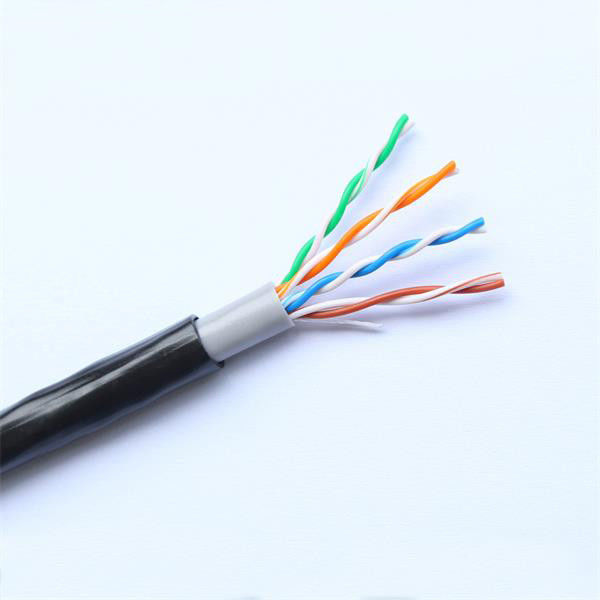

4 Pairs Cat5e Lan Cable Waterproof 24AWG Cat5e Cable

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  4 Pairs Cat5e Lan Cable Waterproof 24AWG Cat5e Cable

Product Details:
Place of Origin: Guangzhou, China
Brand Name: Soger
Certification: CE, RoHS
Model Number: S-5005135W
Payment & Shipping Terms:
Minimum Order Quantity: 50 Rolls
Price: Negotiation
Packaging Details: 305 meters/ box
Delivery Time: 10 - 15 Work Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000 Box /Day
Detailed Product Description
Product Name: 4Pairs UTP Cat5e Cable Conductor: CCA/BC 0.51mm 24AWG Or Customized
Jacket: PVC/PE/LSZH Outer Diameter: 5.00mm Or Customized
Length: 305m 1000ft Type: UTP
Number Of Conductor: 8 Insulation: HDPE
Color: Gray/Blue/Orange Or Customized Package: Wooden Reel/Pull Box
High Light:

4 Pairs 24AWG Cat5e Lan Cable

,

Waterproof Cat5e Lan Cable

,

24AWG Cat5e Cable

4 Pairs 24awg Network Cable Waterproof Utp Cat5e Outdoor Cable



Description:



How to use lightning protection and grounding for outdoor security monitoring items?

We know that the security monitoring outdoor installation is important, is the lightning protection, as building security monitoring system of embedded system, the monitoring of lightning protection mainly from the lightning-proof electromagnetism pulse and lightning-proof is invaded, considering for installation in the front-end equipment such as outdoor camera, also direct lightning protection measures should be taken.



1 ,front-end equipment such as camera should be placed in the flash (lightning rod or other flash conductor) within the effective protection range.In the case of independent camera installation, the lightning rod should be 3-4 meters away from the camera.If it is difficult to install the lightning rod, it can also be installed on the camera support, and the lead can be directly used with the metal rod itself or with φ 8 galvanized round steel.To prevent electromagnetic induction, the power cable and the signal cable of the camera along the rod lead must be shielded through a metal tube.



2 , In order to prevent the lightning wave from invading the front-end equipment along the line, appropriate arrester should be installed on each line in front of the equipment, such as power cable (AC220 volt or DC12 volt), network cable, control line and switch line.



3 ,The power supply of the camera is usually AC220 volt or DC12 volt.If the camera is powered by a DC transformer, the single-phase power arrester should be connected in series or parallel to the front of the DC transformer.If the DC power transmission distance is greater than 15 meters, the camera end should also be connected in series with low-voltage DC arresters.



4 , the outdoor front-end equipment should be well connected to the ground, the ground resistance is less than 4 ω, high soil resistivity area can be relaxed to <10 Ω.

Outdoor monitoring lightning protection is necessary. You need to know the installation and construction technology of the lightning protection equipment in detail.Lightning protection equipment is very important to the security monitoring equipment.Installation is required for all outdoor weak current projects.As a weak current construction personnel, the installation of all weak current engineering equipment should have lightning awareness.





Test Condition:

1. 100% Open & Short Testing

2.Contact durability: min 500 cycles

3.All Material/processes are RoHS Compliant.



Cable Date:

Test object Jacket
Test material PVC
Before Tensile Strength(Mpa) ≥13.8
Aging Elongation(%) ≥100
Aging condition(C xhrs) 100*240
After tensile strength(Mpa) ≥85% of unaged
Aging Elongation(%) ≥50% of naged
Cold bend(-20±2℃*4hrs) No crock
Conductor Solid bare copper/CCA/HCCA
AWG 24
Conductor Dia(mm) 0.51
Insulation PE
Average Thickness(9±0.03mm) 0.20
Min Point Thickness 0.17
Insulation Dia(±0.03mm) 0.91
Twistiing lay length(mm) 30 undemeath
Cabling lay length(mm) 200 undemeath
Jacket PVC
Average Thickness 0.5
Min Point Thickness 0.43
Qutor Dia(i1.0mm) 5.1
Rip Cord YES



Elecrtical Characteristics:

Cat5e Network Cable 4 Pair 24awg Cat5e Lan Cable With Oem Service 0

4 Pairs Cat5e Lan Cable Waterproof 24AWG Cat5e Cable 14 Pairs Cat5e Lan Cable Waterproof 24AWG Cat5e Cable 2
FAQ:

Q1:Are you manufacturer or trading company?

A:We are Professional Electronics Products Manufacturer for USB Cables, Lan cables, Wireharness, Audio cable, HDMI and SATA cables And Others with EOM / ODM Services.



Q2:Can I get samples?

A:Yes,we can offer samples



Q3:Can our logo be printed on your products?

A:Yes.



Q4:What is your delivery time?

A: 3~5 days for sample order,2~3 weeks for bulk orders



Q5:What is your MOQ?

A: 100PCS



Q6:If there is defective product,how do you deal with it?

A:We will reissue it in the next order.



Q7:How do you control the quality?

A: We make inspection three times before delivery



Q8:How to guarantee after sale?

A : We supply 1 year products warranty. If the item is found to be defective in warranty, please contact us as soon sa possible, so that we can help to solve the problem at fastes rate : send back to our factory for repairing, or we send new one for you.



Q9:How to proceed an order for products?
A. 1. let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
