RoHS UTP 13.8Mpa Cat5e Lan Cable 5.00mm Outer Diameter

RoHS UTP 13.8Mpa Cat5e Lan Cable 5.00mm Outer Diameter
RoHS UTP 13.8Mpa Cat5e Lan Cable 5.00mm Outer Diameter RoHS UTP 13.8Mpa Cat5e Lan Cable 5.00mm Outer Diameter

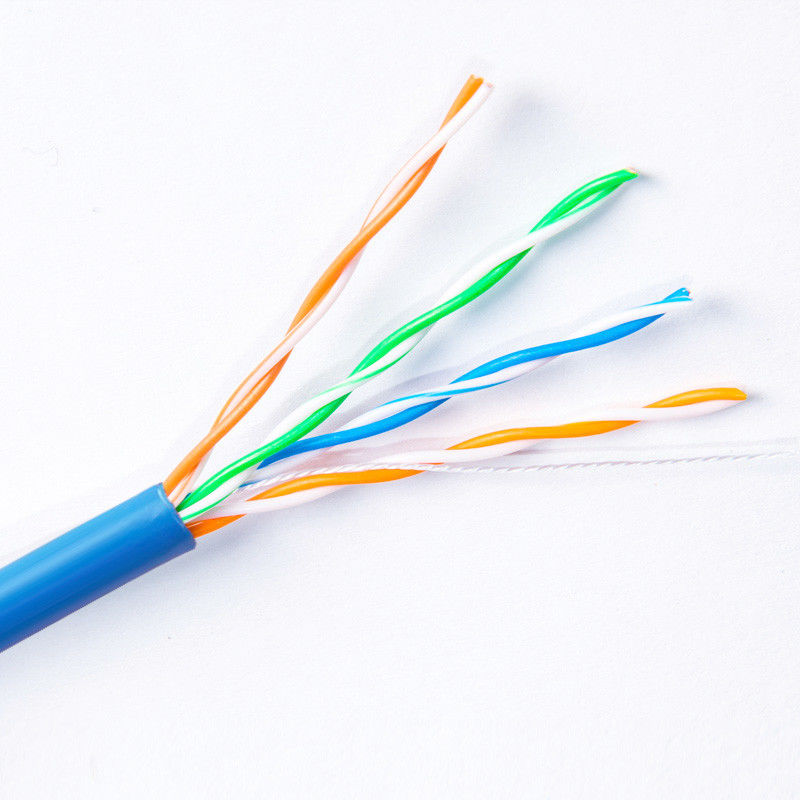

Large Image :  RoHS UTP 13.8Mpa Cat5e Lan Cable 5.00mm Outer Diameter

Product Details:
Place of Origin: Guangzhou, China
Brand Name: Soger
Certification: CE, RoHS
Model Number: S-5005135
Payment & Shipping Terms:
Minimum Order Quantity: 50 Rolls
Price: Negotiation
Packaging Details: 305 meters/ box
Delivery Time: 10 - 15 Work Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000 Box /Day
Detailed Product Description
Product Name: 4Pairs UTP Cat5e Cable Conductor: CCA/BC 0.51mm 24AWG Or Customized
Jacket: PVC/PE/LSZH Outer Diameter: 5.00mm Or Customized
Length: 305m 1000ft Type: UTP
Number Of Conductor: 8 Insulation: HDPE
Color: Gray/Blue/Orange Or Customized Package: Wooden Reel/Pull Box
High Light:

13.8Mpa Cat5e Lan Cable

,

RoHS 13.8Mpa Cat5e Lan Cable

,

13.8Mpa Lan Cable UTP Cat5e

Cat5 Network Cable Utp Bare Copper Internet Cable



Description:



CAT5 cable are classified according to the electrical performance of the twisted-pair cable and represent different quality levels.This type of cable is preferred for fast (100Mbps) Ethernet due to its high quality and low cost. It includes four copper unshielded twisted pair cables with RJ-45 connectors at the terminals.The types of CAT5 network cable increase the winding density, coated with a high quality insulation material, can support the frequency up to 100MHz, transmission speed up to 1000Mbps, mostly used for voice transmission, 1000BASE-T, 100BASE-T and 10BASE-T network.



Cat5e network cable, i.e., Cat5e Twisted Pair, including UTP - Unshielded Twisted Pair and Cat5e Shielded Twisted Pair.Cat5e of unshielded twisted pair is based on the existing five types of shielded twisted pair, and some performance parameters such as near end crosstalk, attenuation crosstalk ratio and return loss are improved, but its transmission bandwidth is still 100MHz.





Electrical Performance:


1.0-100.0MHZ Impendance(ohms)100±15
1.0-100.0MHZ Impendance Delay Screw(ns/100m)<45
Pair to ground Capacitance Unbalance(PF/100M)330 Max
Conductor DC resistance 20%(ohms/km)<93.8
Resistance Unbalance(%) 5



Test object Jacket
Test material PVC
Before Tensile Strength(Mpa) ≥13.8
Aging Elongation(%) ≥100
Aging condition(C xhrs)  100*240
After tensile strength(Mpa) ≥85% of unaged
Aging Elongation(%) ≥50% of naged
Cold bend(-20±2℃*4hrs)  No crock
Conductor Solid bare copper/CCA/HCCA
AWG 24
Conductor Dia(mm) 0.51
Insulation PE
Average Thickness(9±0.03mm) 0.20
Min Point Thickness 0.17
Insulation Dia(±0.03mm) 0.91
Twistiing lay length(mm) 30 undemeath
Cabling lay length(mm) 200 undemeath
Jacket PVC
Average Thickness 0.5
Min Point Thickness 0.43
Qutor Dia(i1.0mm) 5.1
Rip Cord YES
Weight Nom(kg/km) 32
Core Color Blue-white/nlue,Orange-white/orange,Green_white/green,Brown_white/brown



FAQ:



1. When can I get the quotation ?

We usually quote within 24 hours after we get your inquiry. If you are in urgent, please let us know in email or simply call us. we will handle your inquiry preferentially.



2. How can I buy products ?

You can easily send us your required product details via e-mail or online.Then a professional price list will be replied.



3. How can I get a sample to check your quality?

Free samples will be sent to you via ways you prefer to ship .but shipping cost will be collect at your side. we can also provide same low cost shipping method for your reference if necessory .



4. What's your MOQ for OEM order ?

There are different MOQ for different products, Let us know you requirements, we will try our best to satisfy you. Small orders are also welcomed.



5. How long can I expect to get the sample ?

Nomarlly, samples will be ready for delivery in three days. But OEM samples will take little bit longer time according to your details.



6. What about the lead time for mass production ?

As a maufacturer whoes employee over 100. we have confidence to finish any orders in a satified lead time.



7. Warranty&Return Policies:

All products offer 12 month warranty for all of our VIP customers.Our after sale service team will try to solve your quality problems even the products are out of warranty.
