Payment & Shipping Terms:
|Product Name:||4Pairs UTP Cat6 Cable||Conductor:||CCA/BC 0.57mm 23AWG Or Customized|
|Jacket:||PVC/PE/LSZH||Outer Diameter:||6.00mm Or Customized|
|Number Of Conductor:||8||Insulation:||HDPE|
|Color:||Gray/Blue/Orange Or Customized||Package:||Wooden Reel/Pull Box|
4Pairs UTP Ethernet Cable Roll,
Unshielded Twisted Cat6 Ethernet Cable Roll,
4Pairs Cat6 Unshielded Twisted Cable
Cat6 Cable Network Cable Roll Cat6 Outdoor Utp Cable Cat6 Cable 305m Roll Price
"Six categories" means Cat6 unshielded twisted pair wires.

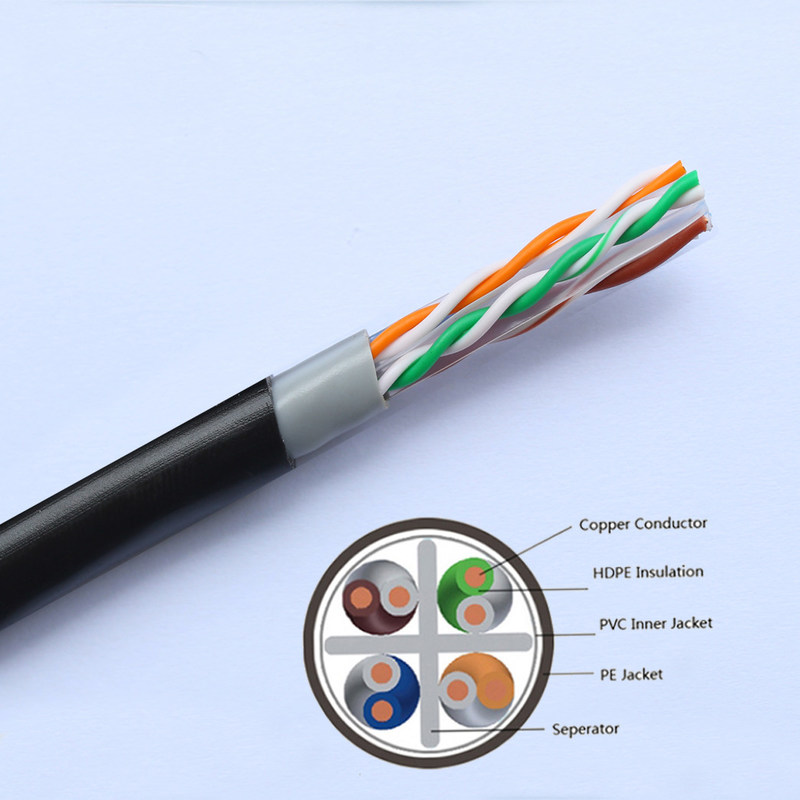

All Cat6 unshielded twisted pair have significantly improved parameters and expanded bandwidth to 250MHz or more.Cat6 twisted pair are different from Cat5 or Cat5e twisted pair in appearance and structure. Not only is the cross frame of insulation added, the four pairs of twisted pair are placed in the four grooves of the cross frame, but also the diameter of the cable is thicker.
The cross frame in the middle of the cable rotates with the change of length, and the four pairs of twisted pair are stuck in the groove of the frame to maintain the relative position of the four pairs of twisted pair, thus improving the balance characteristics and crosstalks attenuation of the cable.In addition, ensure that the balance structure of the cable is not damaged during the installation process.Cat6 unshielded twisted-pair bare copper wire diameter is 0.57mm(wire gauge is 23AWG), insulated wire diameter is 1.02mm, UTP cable diameter is 6.53mm.
305m per roll in a box (33*33*20cm)
2 boxes in a carton (41*33*39cm)
|20 feet container||1000 boxes|
|40 feet container||2100 boxes|
|40 HQ container||2100 boxes|
Contact Person: Mavis
