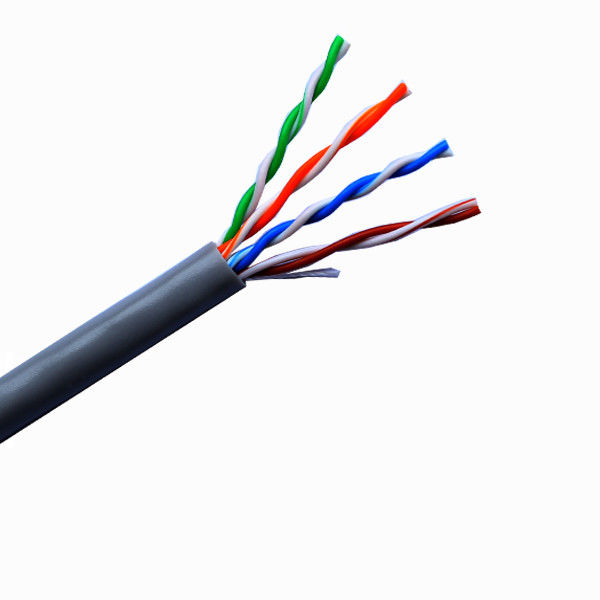

BC 0.51mm 24AWG Cat5e Lan Cable Cat5e UTP Network Cable

I'm Online Chat Now

BC 0.51mm 24AWG Cat5e Lan Cable Cat5e UTP Network Cable

BC 0.51mm 24AWG Cat5e Lan Cable Cat5e UTP Network Cable
BC 0.51mm 24AWG Cat5e Lan Cable Cat5e UTP Network Cable BC 0.51mm 24AWG Cat5e Lan Cable Cat5e UTP Network Cable

Large Image :  BC 0.51mm 24AWG Cat5e Lan Cable Cat5e UTP Network Cable

Product Details:
Place of Origin: Guangzhou, China
Brand Name: Soger
Certification: CE, RoHS
Model Number: S-5005135
Payment & Shipping Terms:
Minimum Order Quantity: 50 Rolls
Price: Negotiation
Packaging Details: 305 meters/ box
Delivery Time: 10 - 15 Work Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000 Box /Day
Detailed Product Description
Product Name: 4Pairs UTP Cat5e Cable Conductor: CCA/BC 0.51mm 24AWG Or Customized
Jacket: PVC/PE/LSZH Outer Diameter: 5.00mm Or Customized
Length: 305m 1000ft Type: UTP
Number Of Conductor: 8 Insulation: HDPE
Color: Gray/Blue/Orange Or Customized Package: Wooden Reel/Pull Box
High Light:

0.51mm Cat5e Lan Cable

,

24AWG Cat5e Lan Cable

,

24AWG Cat5e UTP Network Cable

Cat 5e Cable 4 Pairs Network Cable Interconnect Bulk Cable Cat5e Utp Network Cable



Twisted pair is the most commonly used transmission medium in the comprehensive cabling project. It is a kind of universal wiring made of two mutually insulated conductors which are wound together according to certain specifications. It belongs to the transmission medium of information communication network.



(1) Twisted pair: as a transmission medium, it is composed of two pieces of thin copper wire wrapped with insulating material wound together at a certain ratio.
(2) Why the two wires are twisted in pairs: this intertwining changes the original electronic characteristics of the cable, which can not only reduce the crosstalk of the cable itself, but also prevent the interference of signals from other cables to the cable to the greatest extent.



Electical Characteristic:



Communicate rate 83%
Insulated Resistance ≥5000MΏ.km
Working temperatures -20-75°C
Impedance 93.8 ±15%Ω at 1 to 100MHz
Transmission Characteristic Reference YD/T322-1996
Reference standard YD/t1019-2001; UL758; UL1581; UL444; TIA/EIA-568; CSA C22.2 ; ISO/IEC11801; (Performance and superior to the above standards)
