Home ProductsCat6 Lan Cable

BC 0.58mm Cat 6 Ethernet Kabel PVC Shieded Cat6 Shielded Cables

I'm Online Chat Now

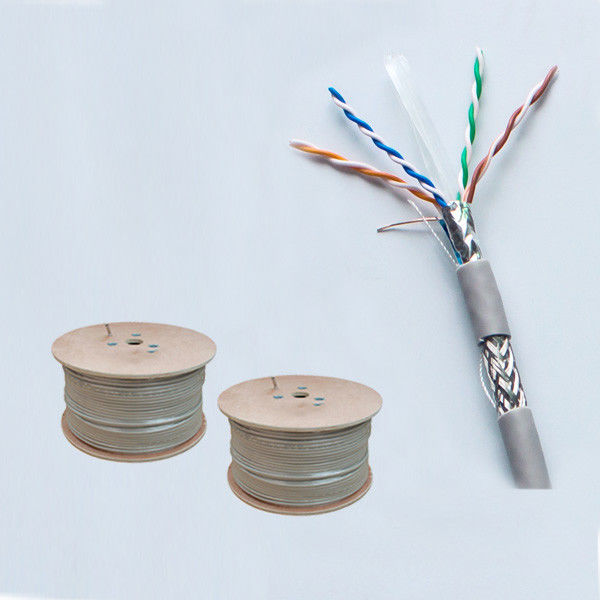

BC 0.58mm Cat 6 Ethernet Kabel PVC Shieded Cat6 Shielded Cables

small.img.alt small.img.alt

Large Image :  BC 0.58mm Cat 6 Ethernet Kabel PVC Shieded Cat6 Shielded Cables

Product Details:
Place of Origin: Guangzhou, China
Brand Name: Soger
Certification: CE, RoHS
Model Number: S-60057135S
Payment & Shipping Terms:
Minimum Order Quantity: 50 Rolls
Price: Negotiation
Packaging Details: 305 meters/ box
Delivery Time: 10 - 15 Work Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000 Box /Day
Detailed Product Description
Product Name: 4Pairs SFTP Cat6 Cable Conductor: CCA/BC 0.58mm 23AWG Or Customized
Jacket: PVC/PE/LSZH Outer Diameter: 7.00mm Or Customized
Length: 305m 1000ft Type: SFTP
Number Of Conductor: 8 Insulation: HDPE
Color: Gray/Blue/Orange Or Customized Package: Wooden Reel/Pull Box
High Light:

BC 0.58mm Cat 6 Ethernet Kabel


0.58mm Cat 6 Ethernet Kabel


0.58mm Cat6 Shielded Cables

Sftp Cat6 Network Lan Cable Cat6 Cable Manufacturers Pvc Shieded


Cat6 shielded network cables refer to the cables that are resistant to the strong interference environment, so as to ensure that network signals are not affected by interference and can be transmitted normally.

Cat6 shielding cable is divided into single shielding cable and double shielding cable, single screen cable refers to the internal only a layer of aluminum foil, double shielding cable refers to the internal has a layer of aluminum foil layer and metal shielding. At present in the use of more is the double shielding cable.


Cat6 shielded cable are mainly used in the environment with strong interference. It is best to choose the six types of non-shielded cable to use in the ordinary environment. Cat6 shielded cable are more difficult than the non-shielded cable when wiring.It is a waste to use the shielded cable in the ordinary environment.
Shielding network cable can not increase the transmission bandwidth and transmission distance. When the network cable shields the signal, the clutter will oscillate back and forth in the shielding layer, forming crosstalk. There will be no obvious feeling at a short distance, but the transmission will be affected at a long distance.
Because the shielding layer is resistant to external electromagnetic interference, the transmission distance of the network cable itself will be consumed at the same time, resulting in a certain attenuation of the network signal. Under the same specifications of the non-shielded network cable and the shielded network cable, the transmission effect and transmission distance of the non-shielded network cable are better.Shielded cable is best used in a very large external radiation environment, the use of non-shielded cable in the daily environment, the transmission effect will be more stable.


Type Cat5e Cat6 Cat6A Cat7
transmission rate 100Mbps 1000Mbps 10Gbps 10Gbps
Broadband frequency 155MHz 250MHz 500MHz 600MHz



100M 100M 100M 100M







Conductor 4Pairs 4Pairs 4Pairs 4Pairs
Application Home/Small Office/etc. Home/Small Office/etc. Project/high-speed transmission/etc Project/high-speed transmission/etc.




Q1. Can I see the sample first before I place the real order? A1: Of course. We can offer little sample for testing quality and market.
Q2. What products can you supply? A2: Our products include CCTV cables, audio&video cables, Lan cables, usb cables, HDMI cables
and so on. Also, we can accept customized cables according to your design pictures.
Q3. Are you a manufacturer or trading company? A3: We are a manufacturer with more than 10 years experience.
Q4. What certification do you have? A4: Our quality control system & products' quality approved by CE & ISO & RoHS.


BC 0.58mm Cat 6 Ethernet Kabel PVC Shieded Cat6 Shielded Cables 0



BC 0.58mm Cat 6 Ethernet Kabel PVC Shieded Cat6 Shielded Cables 1
