Gel Filled HDPE Outdoor Ethernet Cable Cat6 Rj45 Ethernet Cable

I'm Online Chat Now

Gel Filled HDPE Outdoor Ethernet Cable Cat6 Rj45 Ethernet Cable

large.img.alt
small.img.alt small.img.alt

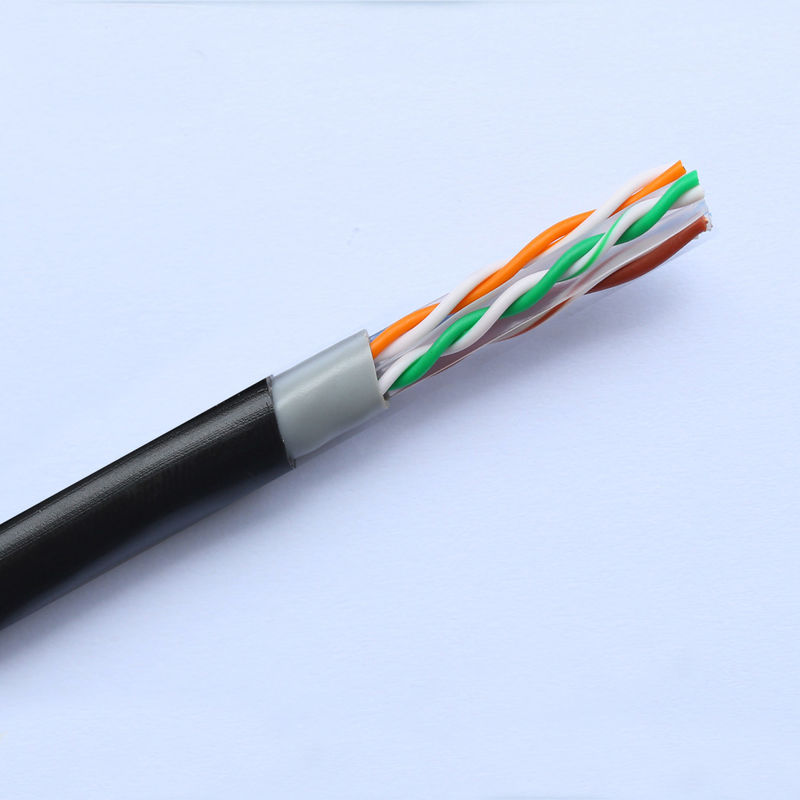

Large Image :  Gel Filled HDPE Outdoor Ethernet Cable Cat6 Rj45 Ethernet Cable

Product Details:
Place of Origin: Guangzhou, China
Brand Name: Soger
Certification: CE, RoHS
Model Number: S-6005735W
Payment & Shipping Terms:
Minimum Order Quantity: 50 Rolls
Price: Negotiation
Packaging Details: 305 meters/ box
Delivery Time: 10 - 15 Work Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000 Box /Day
Detailed Product Description
Product Name: 4Pairs UTP Cat6 Cable Conductor: CCA/BC 0.57mm 23AWG Or Customized
Jacket: PVC/PE/LSZH Outer Diameter: 6.00mm Or Customized
Length: 305m 1000ft Type: UTP
Number Of Conductor: 8 Insulation: HDPE
Color: Gray/Blue/Orange Or Customized Package: Wooden Reel/Pull Box
High Light:

Rj45 Outdoor Ethernet Cable Cat6

,

HDPE Outdoor Ethernet Cable Cat6

,

HDPE Rj45 Ethernet Cable

Outdoor Waterproof Internet Cable Rj45 Cable Greased Jelly Filled Or Gel Filled Utp Cat6



Material Instruction:



Conductor CCA or 23AWG Soft Plain Copper
Material Eco-friendly,pollution-free and new materials selected.Promise new material only
Insulation Solid HDPE
Jacket Eco-friendly PE Jacket , high-temperature resistance,long working life




Physical Electrical Characteristics:


Using standard twisted construction design, small crosstalk of signal transmission Upload and download in high speed transfer.


Bandwidth is standard 250 MHz.


Support 10-Gigabit Ethernet netword transmission requirements.


DC resistance (max): 4.8Ω/100m at 20°C;


Mutual capactitance (max): 5.6nF/100m;


Unbalanced capacitance (max): 330pF/100m;


Dielectric strength between conductors (min): 2.5kV/2s;


Impedance: 1-250MHz 100±15Ω;


Differential phase delay (max): 45ns/100m;


Operating temperature: -20~+60°C;


Permitted bend radius: 10 times diameter of the cable.


Standard / Certificate:


Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B


Certificates ISO9001,14000, ROHS.


Applications:


10Base-T4


100Base-TX


100Base-VG-ANYLAN


155Mbps ATM


622 Mbps ATM


1000Base-T


1000Base-TX


10Gbase-T
