Product Details
Place of Origin: Guangzhou, China
Brand Name: Soger
Certification: CE, RoHS
Model Number: S-6005735
Payment & Shipping Terms
Minimum Order Quantity: 50 Rolls
Price: Negotiation
Packaging Details: 305 meters/ box
Delivery Time: 10 - 15 Work Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000 Box /Day
Product Name: |
4Pairs UTP Cat6 Cable |
Conductor: |
CCA/BC 0.57mm 23AWG Or Customized |
Jacket: |
PVC/PE/LSZH |
Outer Diameter: |
6.00mm Or Customized |
Length: |
305m 1000ft |
Type: |
UTP |
Number Of Conductor: |
8 |
Insulation: |
HDPE |
Color: |
Gray/Blue/Orange Or Customized |
Package: |
Wooden Reel/Pull Box |
Product Name: |
4Pairs UTP Cat6 Cable |
Conductor: |
CCA/BC 0.57mm 23AWG Or Customized |
Jacket: |
PVC/PE/LSZH |
Outer Diameter: |
6.00mm Or Customized |
Length: |
305m 1000ft |
Type: |
UTP |
Number Of Conductor: |
8 |
Insulation: |
HDPE |
Color: |
Gray/Blue/Orange Or Customized |
Package: |
Wooden Reel/Pull Box |

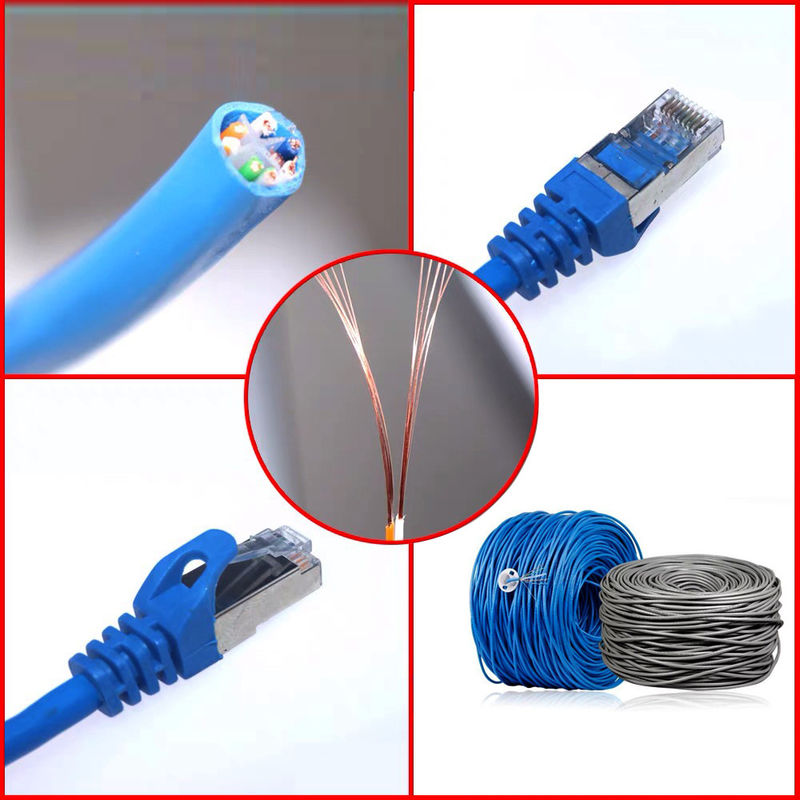

Cat 6 Cable Ethernet Cable Manufacturers Cat6 Utp Twisted Pair
Description:
The English name for the twisted pair is Twisted Pair. It is the most commonly used transmission medium in integrated wiring engineering.
The twisted pair uses a pair of mutually insulated metal wires to twist the electromagnetic wave interference with a frequency less than 25 MHz. By twisting two insulated copper wires together at a certain density, the degree of signal interference can be reduced, and the electric wave radiated by each wire during transmission can be cancelled by the electric wave emitted from the other wire. The name "twisted pair" is also derived from this.
The pair is usually twisted by a pair of insulated copper conductors of 22-24 gauge. In actual use, the twisted pair is wrapped in multiple insulated twisted pairs together in an insulated cable sheath. Typical twisted pairs have four pairs, and more pairs of twisted pairs are placed in a cable jacket. This is what we call twisted pair cable. In twisted pair cables (also known as twisted pair cables), different pairs have different twist lengths. Generally, the denser the twisted wire is, the stronger its anti-interference ability is. Compared with other transmission media, the twisted pair is limited in terms of transmission distance, channel length and data transmission speed, but the price is relatively low.
Specification:
| Item | Structure (mm) | Insulation thickness (mm) | Approx overall dia. (mm) |
| UTP CAT5E | 4x0.48 | 0.90 | 5.2 |
| UTP CAT5E | 4x0.50 | 0.91 | 5.3 |
| UTP CAT5E | 4x0.52 | 0.93 | 5.3 |
| FTP CAT5E | 4x0.48 | 0.92 | 6.4 |
| FTP CAT5E | 4x0.50 | 0.94 | 6.5 |
| FTP CAT5E | 4x0.52 | 0.96 | 6.5 |
| UTP CAT6 | 4x0.50 | 0.96 | 6.3 |
| UTP CAT6 | 4x0.55 | 1.01 | 6.4 |
| UTP CAT6 | 4x0.57 | 1.03 | 6.4 |
| FTP CAT6 | 4x0.50 | 0.98 | 7.3 |
| FTP CAT6 | 4x0.55 | 1.03 | 7.4 |
| FTP CAT6 | 4x0.57 | 1.05 | 7.4 |
FAQ:
1, How can I get samples?
RE: Free sample and courier freight paid by buyer, we will send the samples to you after receipt of your payment.
The charge both sample and courier cost will be return you once the mass order placed.
2, Are you a manufacturer or a trader?
RE: We are a Manufacturer of 20 year’s experience engineers. We have a 1000 square meters of each factory area and 50 professional production workers.
3, What's the payment?
RE: T/T,LC,Western Union,payment are all available for you.
4, Do you accept OEM&ODM order?
RE: Of course, we do.And the MOQ is 30000meters the customized.
6, What's your FOB port?
RE: Shenzhen Port,Guangzhou Port and any ports all available for you.
7, How about your lead time?
RE: For sample 5 days. For bulk order within 30 days usually.
If you place order in peak period, maybe it will take longer.But we will do our best to reach your requirements.
8. What’s the warranty of your products?
RE: Usually we guarantee one years after delivery date, but depends on the specified product.
