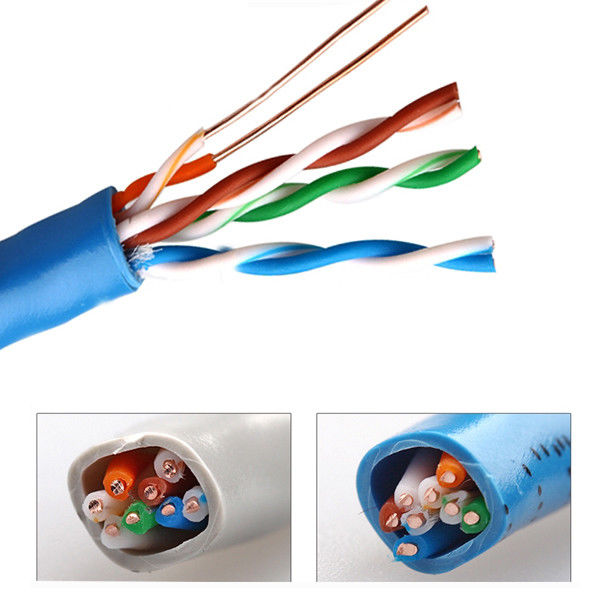

8 Core Cat5e Lan Cable UTP Copper Network Cable

I'm Online Chat Now

8 Core Cat5e Lan Cable UTP Copper Network Cable

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  8 Core Cat5e Lan Cable UTP Copper Network Cable

Product Details:
Place of Origin: Guangzhou, China
Brand Name: Soger
Certification: CE, RoHS
Model Number: S-5005135
Payment & Shipping Terms:
Minimum Order Quantity: 50 Rolls
Price: Negotiation
Packaging Details: 305 meters/ box
Delivery Time: 10 - 15 Work Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000 Box /Day
Detailed Product Description
Product Name: 4Pairs UTP Cat5e Cable Conductor: CCA/BC 0.51mm 24AWG Or Customized
Jacket: PVC/PE/LSZH Outer Diameter: 5.00mm Or Customized
Length: 305m 1000ft Type: UTP
Number Of Conductor: 8 Insulation: HDPE
Color: Gray/Blue/Orange Or Customized Package: Wooden Reel/Pull Box
High Light:

8 Core Cat5e Lan Cable

,

Copper UTP Cat5e Lan Cable

,

Copper Network Cable

Communication Cable Wholesale Utp Cat5e Cable Manufactures Copper Network Cable



What are the steps of network cabinet arrangement?

1.Install the cabinet: Install the cabinet in the correct way. You can watch some installation videos for operation.



2. Line arrangement: In the construction of the network room, the first task of this step is to group the network cables, and then bundle all the power cables in the equipment together, and then put the power plug through the through hole at the back, and arrange the equipment through the separate wire frame.



3. Securing the device: After placing the device on the cabinet, the baffle plate in the cabinet should be adjusted to an appropriate position for future arrangement.



4. Label: After connecting the network cables in the cabinet, label the network cables.The crossed network cables can be labeled with different colors. The devices need to be classified, numbered, and labeled to facilitate later arrangement.

After completing the above steps, you need to finish the work and make sure there are no problems.A network connection test is required to ensure that the network is connected.Another point is to update the cabinet collation content document for maintenance and inspection.



Description:



Twisted pair in computer LAN can be divided into two categories: unshielded twisted pair (UTP) and shielded twisted pair (STP). The STP is wrapped by a metal material to reduce radiation and prevent information from being eavesdropped. It also has a high data transmission rate, but it is expensive and complicated to install.UTP does not have metal shielding material, only one layer of insulating rubber wrap, the price is relatively cheap, flexible network.In addition to some special occasions (such as the electromagnetic radiation is serious, the transmission quality requirements are higher) in the wiring use of STP, we generally use UTP.

UTP in use today can be classified into 3, 4, 5, 5e, 6, and 6A.Among them, three types of UTPs adapt to the requirements of Ethernet (10Mbps) for the transmission medium, which is an important transmission medium in the early network;Because the standard of UTP 4 is introduced later than that of UTP 3, and the transmission performance is not much better than that of UTP 3, so it is seldom used.The five UTPs are the preferred media for fast Ethernet (100Mbps) due to their low price and high quality.The super five UTPs are used for gigabit Ethernet (1000Mbps).

Cat5e has low attenuation, less crosstalk, higher attenuation to crosstalk ratio (ACR) and signal to noise ratio (Structural Return Loss), smaller delay error, and greatly improved performance.The maximum transmission rate of Cat5e cable is 250Mbps.





Why Choose Soger?




1 Innovative and complete solution provider.
2 Professional and timely technical support.
3 Comprehensive certificate authentication.
4 Strict testing and packing section.
5 Stocks available.
6 OEM/ODM production service.
7 Perfect after-sales service.
8

1 year warranty period after sales(except man-made,natural disaster,special environmental corrosion).



Application:



1. Broadband Network Communication.
2. Digital ISDN Network and ATM 155Mbps Network.
3. Ethernet Network.
4. Audio and Data Transmission.
5. Connect the computer and displayer.
8 Core Cat5e Lan Cable UTP Copper Network Cable 0
FAQ:

Q1: Are you a factory or trading company?
A1: We are a manufacturer.



Q2: Where is your factory located? How can I visit there?

A2:Our factory are located in jieyang city.

You can fly to Shenzhen or Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.



Q3: May I buy samples from you?

A3: Yes! You are welcome to place sample order to test our superior quality and services.



Q4: What is your Warranty?

A4: All the products will have 12 months Warranty.



Q5:What payment method do you accept?

A5:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc.



Q6: Can you put my brand name (logo) on these products?

A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.



Q7: May I know the status of my order?

A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.



Q8: What’s the leading time? (How long do you need to prepare my goods?

A8: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment, and arrive you within about 3-7 working days via international express.



Q9: How will you deliver my goods to me?

A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.



Q10: Can you provide us more other products to us to help us to save more shipping costs?

A10: Yes. There’re kinds of HDMI Cables, VGA Cables, DVI Cables, Data USB cables, Display port on DB 9, DB 25, Aux Audio and video Cables, Cat network LAN Cables will be the main products line of our factory. The OEM bulk order will be accept as well.
