Product Details:
Payment & Shipping Terms:
|
Product Name: | 4Pairs UTP Cat5e Cable | Conductor: | CCA/BC 0.51mm 24AWG Or Customized |
---|---|---|---|
Jacket: | PVC/PE/LSZH | Outer Diameter: | 5.00mm Or Customized |
Length: | 305m 1000ft | Type: | UTP |
Number Of Conductor: | 8 | Insulation: | HDPE |
Color: | Gray/Blue/Orange Or Customized | Package: | Wooden Reel/Pull Box |
High Light: | PVC Braided Cat5e Lan Cable,15m Cat5e Lan Cable,15m Kabel UTP Outdoor Cat5e |

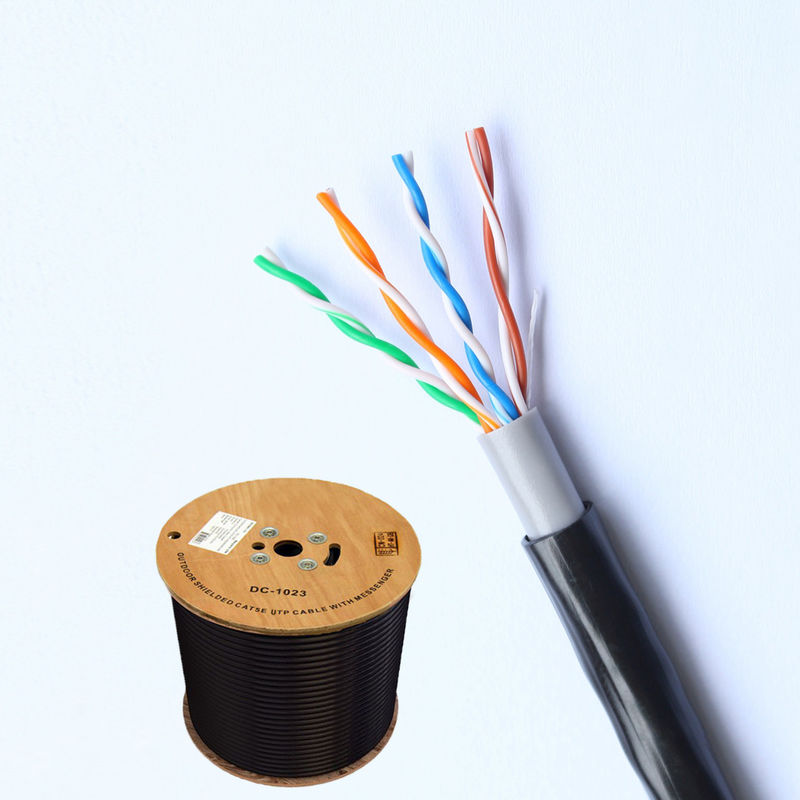

Cat5e Utp Outdoor Cable Pvc Braided Cat5 Outdoor Cable 305 Meter Kabel UTP Outdoor Cat5e
Description:
The material of super five type net wire is divided into many kinds: anaerobic copper, bronze, copper-clad aluminum, copper-clad silver, four-iron four-aluminum, etc.Four iron and four aluminum are the worst quality.Copper-clad aluminum and copper-clad aluminum burn immediately upon fire, and break immediately after being burned and folded. Bronze is also called copper-clad copper. The outer layer is covered with a layer of oxygen-free copper, which is different in color and surface when scraped.Oxygen-free copper is truly oxygen-free copper. No matter how many layers are scraped, the color of the copper core will not change.
In fact, there are 4 pairs of twisted pair of super five types of cable and filling rope, and the outer skin combination, outdoor than indoor more than a layer of PE waterproof outer layer, mainly play the role of waterproof and moisture proof, super five types of cable life is about 10 years, indoor cable if used in the outdoor, the general life is more than 1 year, short-term use can be.
Electrical Characterstics:
1. 100% Open & Short Testing
2.Contact durability: min 500 cycles
3.All Material/processes are RoHS Compliant.
Test object | Jacket |
Test material | PVC |
Before Tensile Strength(Mpa) | ≥13.8 |
Aging Elongation(%) | ≥100 |
Aging condition(C xhrs) | 100*240 |
After tensile strength(Mpa) | ≥85% of unaged |
Aging Elongation(%) | ≥50% of naged |
Cold bend(-20±2℃*4hrs) | No crock |
Conductor | Solid bare copper/CCA/HCCA |
AWG | 24 |
Conductor Dia(mm) | 0.51 |
Insulation | PE |
Average Thickness(9±0.03mm) | 0.20 |
Min Point Thickness | 0.17 |
Cabling lay length(mm) | 200 undemeath |
Jacket | PVC |
Average Thickness | 0.5 |
Min Point Thickness | 0.43 |
Qutor Dia(i1.0mm) | 5.1 |
Rip Cord | YES |
Weight Nom(kg/km) | 32 |
Core Color |
Blue-white/nlue,Orange-white/orange,Green_white/green,Brown_white/brown |
1. Complete production lines: from raw copper material to finished products.
2. Long history: more than 10 years experiences in this industry.
3. High quality: 100% test before shippment. Have strong quality control department.
4. Certificate: international quality certifications like CE, ISO, RoHS etc.
5. Perfect Service: prompt and professional pre-sales and after-sales services to support our customers.
