Product Name: | 4Pairs UTP Cat6 Cable | Conductor: | CCA/BC 0.57mm 23AWG Or Customized |
---|---|---|---|
Jacket: | PVC/PE/LSZH | Outer Diameter: | 6.00mm Or Customized |
Length: | 305m 1000ft | Type: | UTP |
Number Of Conductor: | 8 | Insulation: | HDPE |
Color: | Gray/Blue/Orange Or Customized | Package: | Wooden Reel/Pull Box |
High Light: | 0.57mm Cat6 Lan Cable,RoHS Cat6 Lan Cable |

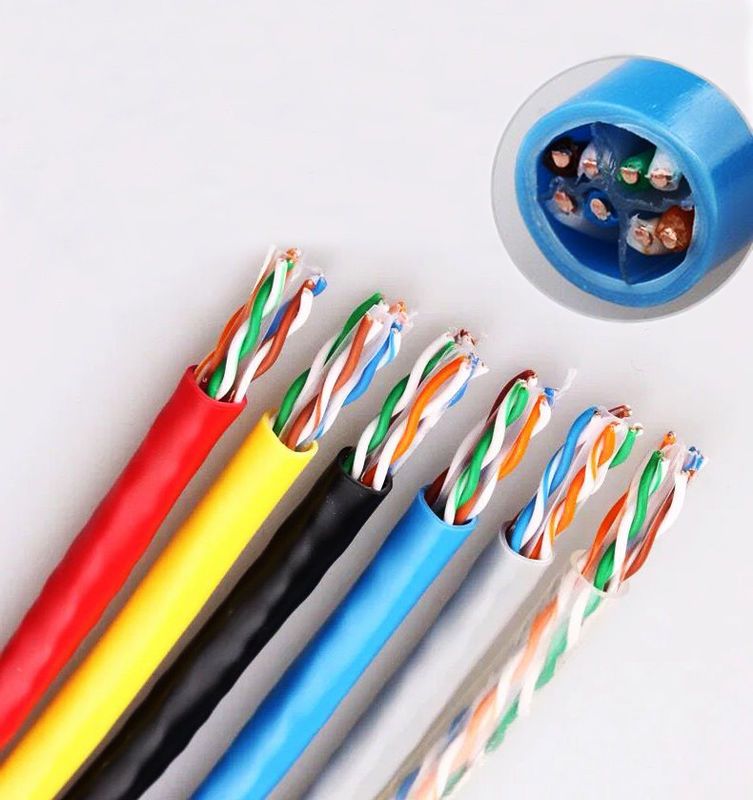

Cat6 Lan Network Cat6 Cable Cat6 Utp Ethernet Cable 0.57mm Blue Jacket
Description:
Product name | Color | Lenth | Jacket | Conductor |
Cat6 UTP 4*2*0.57mm cable | Black/Blue/Grey/Optional | 100m/300m/305m | PVC |
Conductor Size | Shield | Jacket | Application | Certification |
23AWG | Non-Shielded | PVC | Computer Networks | CE/ROHS/ISO9001/ISO14001 |
Specification:
Item | Structure (mm) | Insulation thickness (mm) | Approx overall dia. (mm) |
UTP CAT5E | 4x0.48 | 0.90 | 5.2 |
UTP CAT5E | 4x0.50 | 0.91 | 5.3 |
UTP CAT5E | 4x0.52 | 0.93 | 5.3 |
FTP CAT5E | 4x0.48 | 0.92 | 6.4 |
FTP CAT5E | 4x0.50 | 0.94 | 6.5 |
FTP CAT5E | 4x0.52 | 0.96 | 6.5 |
UTP CAT6 | 4x0.50 | 0.96 | 6.3 |
UTP CAT6 | 4x0.55 | 1.01 | 6.4 |
UTP CAT6 | 4x0.57 | 1.03 | 6.4 |
FTP CAT6 | 4x0.50 | 0.98 | 7.3 |
FTP CAT6 | 4x0.55 | 1.03 | 7.4 |
FTP CAT6 | 4x0.57 | 1.05 | 7.4 |
Application:
Used for computers;
Used for internet;
Use for LAN ( Local Area Network );
1. Broadband Network Communication.
2. Audio and Data Transmission.
3. Connect the router and laptop.
4. Ues in telecom business.
