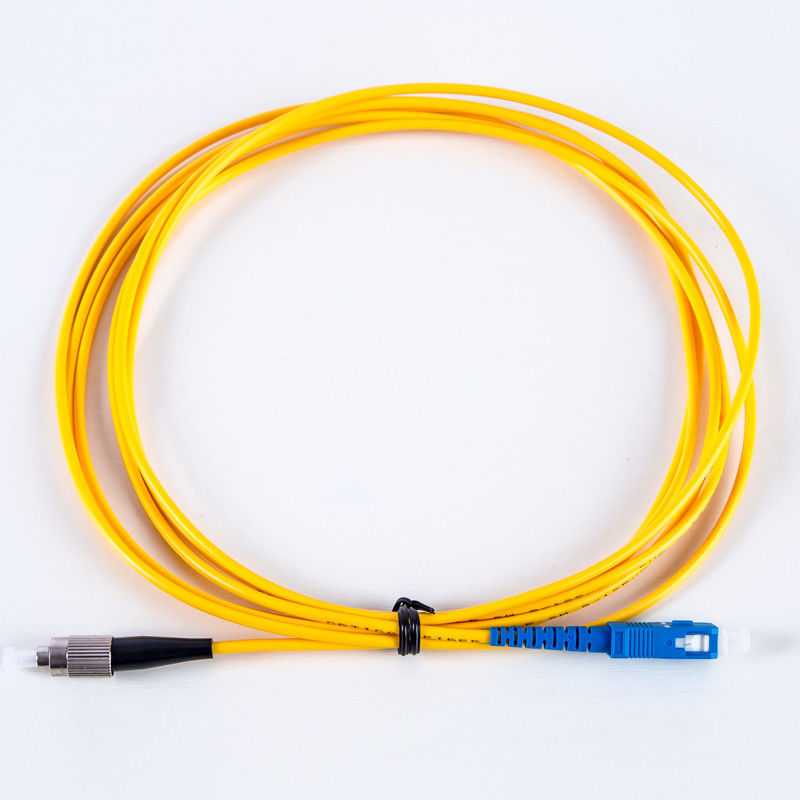

OM3 10G FTTH Fiber Optic Cable Multimode Duplex FC To SC

I'm Online Chat Now

OM3 10G FTTH Fiber Optic Cable Multimode Duplex FC To SC

OM3 10G FTTH Fiber Optic Cable Multimode Duplex FC To SC
OM3 10G FTTH Fiber Optic Cable Multimode Duplex FC To SC OM3 10G FTTH Fiber Optic Cable Multimode Duplex FC To SC

Large Image :  OM3 10G FTTH Fiber Optic Cable Multimode Duplex FC To SC

Product Details:
Place of Origin: China
Brand Name: Soger
Certification: CE
Model Number: F-S03
Payment & Shipping Terms:
Minimum Order Quantity: 10000PCS
Price: $3-5/PCS
Packaging Details: Poly bag
Delivery Time: 10days
Payment Terms: T/T, Western Union
Detailed Product Description
Type: Fiber Optic Cable, Fiber Optic Cable Color: Custom
Material: Plastic OEM/ODM: Yes
Core Number: 1-12 Function: VLAN Support
High Light:

10G FTTH Fiber Optic Cable

,

OM3 FTTH Fiber Optic Cable

,

OM3 Multimode Fibre Optic Cable

Supply Optic Fiber Patch Cord Multimode Duplex FC to SC Fiber Optic Patch Cord 3.mm



Application:

1).Communication rooms

2).FTTH (Fiber to The Home)

3).LAN (Local Area Network)

4).FOS (fiber optic sensor)

5).Fiber Optic Communication System

6).Optical fiber connected and transmitted equipment

7).Defense combat readiness

Specification:
Type Standard,Master
Style LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Fiber

Singlemode/Multimode

50/125, 62.5/125 (Multimode) OM2&OM1

50/125, 10G (Multimode) OM3

Cable

Simplex, Duplex

Φ3.0mm, Φ2.0mm, Φ0.9mm

PVC or LSZH

Polishing Manner UPC,SPC,APC (8°& 6°)
Insertion Loss

≤ 0.1dB (For Singlemode Master)

≤ 0.25dB (For Singlemode Standard)

≤ 0.25dB (For Multimode)

Tested by JDS RM 3750

Return Loss

(Singlemode)

UPC ≥ 50dB

SPC ≥ 55dB

APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750

Repeatability ±0.1dB
Operating temperature -400C to 850C

Geometry Requirement

( Singlemode)

Ferrule Endface Radius

7mm ≤ R ≤ 12mm (For APC)

10mm ≤ R ≤ 25mm (For Standard)

Apex Offset ≤ 30 μm (For Master)

Apex Offset ≤ 50 μm (For Standard)

Undercut -50nm ≤ U ≤ 50nm

Tested by DORC ZX-1
