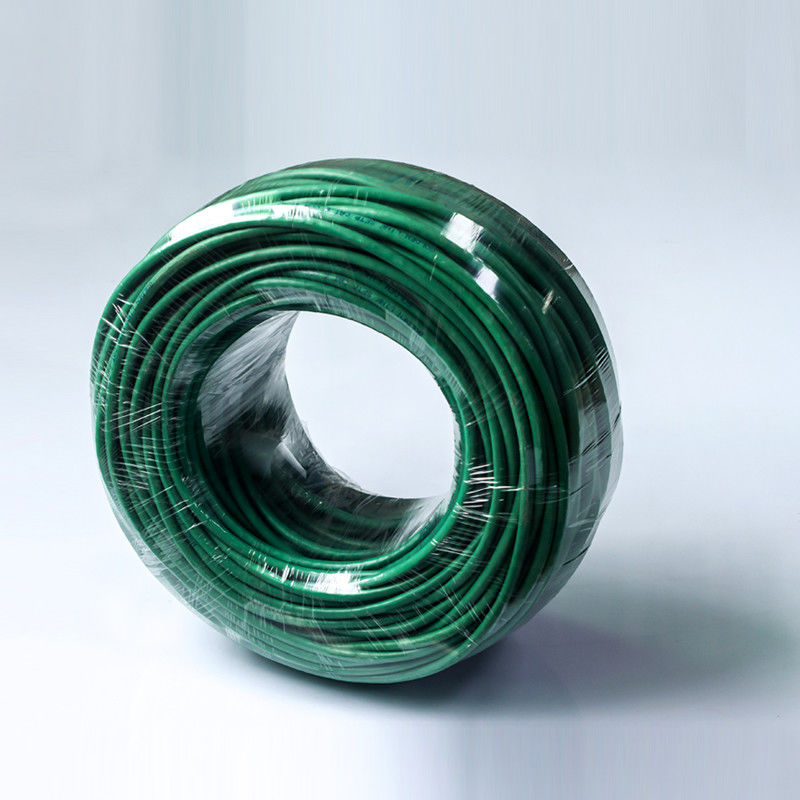

SFTP Cat6 Computer Network Cable BC 0.58mm 23AWG

Network Cables Cat6 Ethernet Sftp Cable Ethernet Pc Cable 305m Network Cable

Cat6 shielded crystal head is different from the Cat5e crystal head in that it has 8 internal lines and an external metal shell.

First of all, the net wire shell will be opened with pressure wire clamp, and the shielding line will be removed.

Remove the support frame in the middle. Don't cut it too deep. It's easy to reach. Separate the interwoven threads. And cut neatly. Pull the inner part of the crystal head down the wire until you reach the unbuttoned part, then subtract the excess cable at the front end.

According to the standard network line, there are two forms of parallel line and cross line.Both ends of parallel lines are 568A standard or 568B standard: one end of the cross line is not 568A standard, while the other end is 568B standard. The sequence color of 568A/568B standard line is shown as follows:
568B standard line sequence: white orange, orange, white green blue, white blue, green, white brown, brown.
568A standard line sequence: white green, green, white orange blue, white blue, orange, white brown, brown.
Suppress complete test.

Cat 6 SFTP shielded network cable: the transmission frequency of this kind of cable is 1MHz ~ 250MHz. The comprehensive attenuation crosstalk ratio (PS-ACR) of Cat 6 cabling system should have a large margin at 200MHz, which provides twice the bandwidth of cat 5e. The transmission performance of Cat 6 cabling is much higher than that of cat 5 standard, which is most suitable for applications with transmission rate higher than 1Gbps.
