Product Details:
Payment & Shipping Terms:
|
Product Name: | 4Pairs SFTP Cat7 Cable | Conductor: | CCA/BC 0.58mm 23AWG Or Customized |
---|---|---|---|
Jacket: | PVC/PE/LSZH | Outer Diameter: | 7.00mm Or Customized |
Length: | 305m 1000ft | Type: | SFTP |
Number Of Conductor: | 8 | Insulation: | HDPE |
Color: | Gray/Blue/Orange Or Customized | Package: | Wooden Reel/Pull Box |
High Light: | LSZH Lan Network Cable,550MHZ Lan Network Cable,550MHZ Cable Ethernet Cat 6A SFTP |

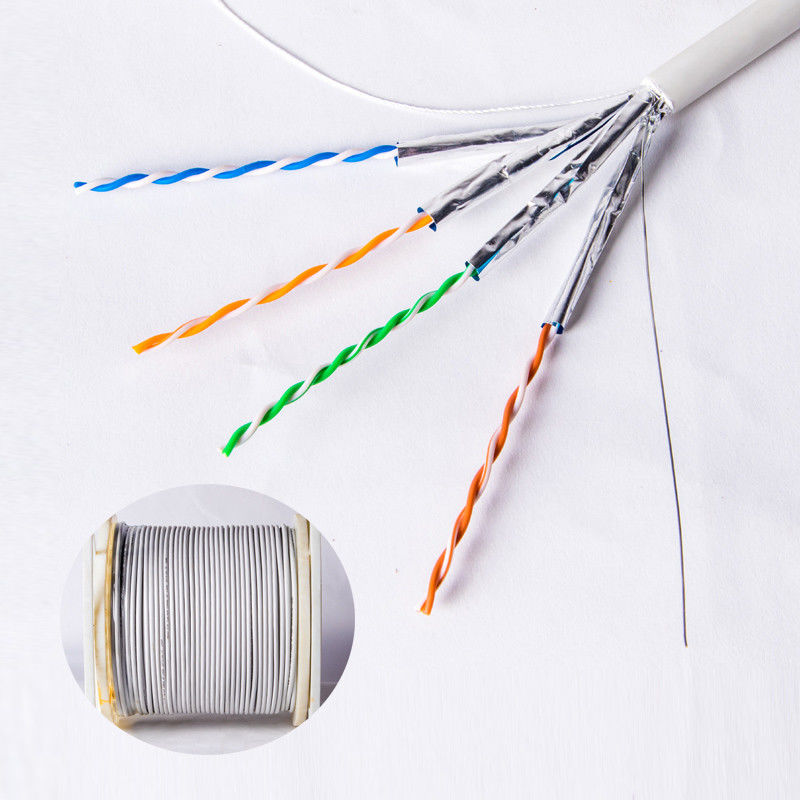

550MHZ Lan Network Cable Ethernet Cat 6A FTP LSZH Bare Copper
Standard/Caertficate:
Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B
Certificates ISO9001,14000, ROHS.
Type | Cat5e | Cat6 | Cat6A | Cat7 |
transmission rate | 100Mbps | 1000Mbps | 10Gbps | 10Gbps |
Broadband frequency | 155MHz | 250MHz | 500MHz | 600MHz |
transmission distance |
100M | 100M | 100M | 100M |
Shield/ Unshield |
UTP/FTP/ SFTP |
UTP/FTP/ SFTP |
UTP/FTP | SFTP |
Conductor | 4Pairs | 4Pairs | 4Pairs | 4Pairs |
Application | Home/Small Office/etc. | Home/Small Office/etc. | Project/high-speed transmission/etc | Project/high-speed transmission/etc. |
Specification:
Name | Cat6A Ethernet cable |
Color | Grey, Blue, Orange or optional |
Type | Round |
Singal Shielding | Cross isolation system |
Transmission Rate | 10Gbps |
Broadband | 600Mhz |
Core | 26awg/4paris |
OD | 6.2mm |
Material | Pure Copper |
Applications | Router,computer,TV,Laptop,TV BOX |
Transmission Performance for reference
1. When can I get the quotation ?
We usually quote within 24 hours after we get your inquiry. If you are in urgent, please let us know in email or simply call us. we will handle your inquiry preferentially.
2. How can I buy products ?
You can easily send us your required product details via e-mail or online.Then a professional price list will be replied.
3. How can I get a sample to check your quality?
Free samples will be sent to you via ways you prefer to ship .but shipping cost will be collect at your side. we can also provide same low cost shipping method for your reference if necessory .
4. What's your MOQ for OEM order ?
There are different MOQ for different products, Let us know you requirements, we will try our best to satisfy you. Small orders are also welcomed.
5. How long can I expect to get the sample ?
Nomarlly, samples will be ready for delivery in three days. But OEM samples will take little bit longer time according to your details.
6. What about the lead time for mass production ?
As a maufacturer whoes employee over 100. we have confidence to finish any orders in a satified lead time.
7. Warranty&Return Policies:
All products offer 12 month warranty for all customers.Our after sale service team will try to solve your quality problems even the products are out of warranty.
