Product Details
Place of Origin: Guangdong,China
Brand Name: Soger
Certification: CE,Rosh
Model Number: RG6-S01
Payment & Shipping Terms
Minimum Order Quantity: 30000Meters
Price: $3-65/Box
Packaging Details: Box or Reel
Delivery Time: 10days
Payment Terms: T/T, Western Union
Conductor: |
CU/CCS/CCA |
Jacket: |
PVC |
Shield: |
32/48/64/96/112 |
Packing: |
100m PE Film/ 305m Woodern Drum |
Application: |
CCTV System, Satellite |
Color: |
Customization |
Insulation: |
FPE |
Sample: |
Free And Freight Collect |
Conductor: |
CU/CCS/CCA |
Jacket: |
PVC |
Shield: |
32/48/64/96/112 |
Packing: |
100m PE Film/ 305m Woodern Drum |
Application: |
CCTV System, Satellite |
Color: |
Customization |
Insulation: |
FPE |
Sample: |
Free And Freight Collect |
CCTV communication cables bare copper CCA rg 6 RG6 coaxial cable
*RG6 Coaxial Cable is ideal for cable TV (CATV), connecting audio and video components, cable modems, satellite TV, off-air antenna and other coaxial enabled devices. Fully swept test up to 3-GHz is ideal for applications which requires high frequency level signals.

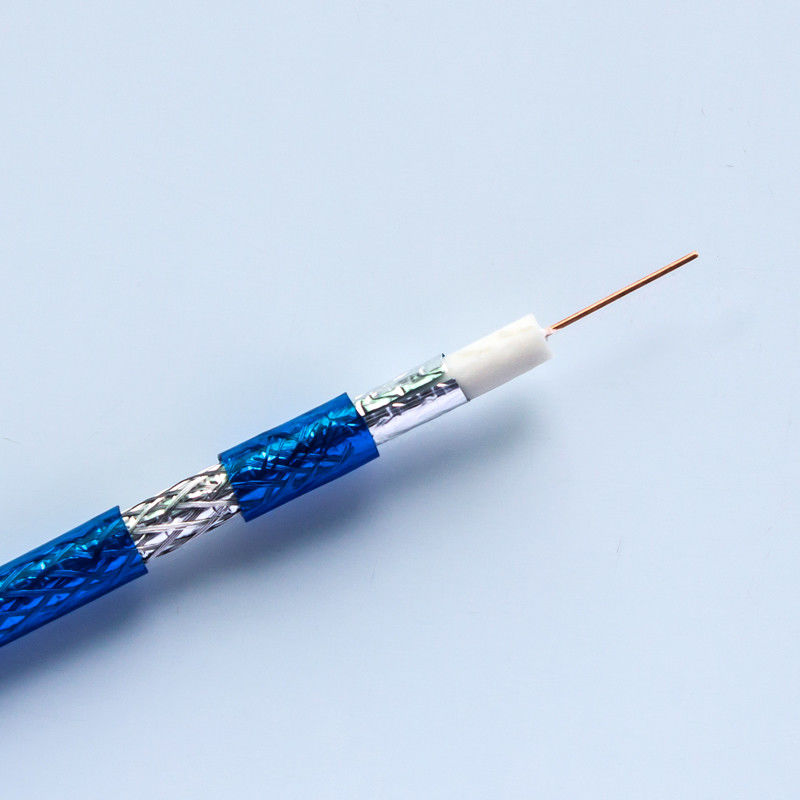

The RG6 cable comprises a single, solid, anaerobic copper, 18 AWG, 75 ohm, coax conductor in a foamed PE dielectric wrapped in a foil shield with 120% shield coverage plus a Al-mg braid shield with 77% shield coverage.
Specifications:
| RG6 Coaxial Cable | 1.02 Copper/CCS+4.57FPE+AL Foil+Al Braids+OD6.9PVC |
| MOQ | 30,000Meters |
| Conductor Material | Copper/CCA/CCS |
| Insulation | Foam/Solid PE |
| Braided | 64W, 72W, 80W, 96W, 128W or customized |
| Jacket | PVC |
Applications:
1) Broadcasting equipment professional camcorders
2) CCTV closed circuit television
3) CATV community antenna television
4) CBS-direct broadcasting satellite
Feature:
1. Inner Conductor: Bare Copper, CCA, CCS
2. Dielectric: Foam/Solid PE
3. Shield: (Bonded/non-bonded) A/P/A, A/P Foil, copper Foil
4. Braid wire material: Bare Copper, CCA, AL-Mg, TC
5. Braid wire diameter: 0.12mm, 0.16mm
6. Braid net: 64W, 72W, 80W, 96W, 128W and more
7. Braid coverage: 60%, 70%, 80%, 90% and more
8. PVC jacket degree: 65, 70, 75 and more
9. Customized requirement welcomed.
FAQ:
-Q:Can I get the quotation ?
A:Yes. We usually quote within 12 hours after we get your inquiry. If urgent, please call or Email us directly.
-Q: Can have a sample before place order?
A: Yes, sample free and freight collect. After place order, will refund the freight
-Q: What is the warranty?
A: 12Month
-Q:How you test the quality of products?
A:Each cable should be tested at least 5 times before shipment. And will send the report of each test.
-Q: How about the After-sales service?
A: Will be answer within 12 hours, solution within 2 days
