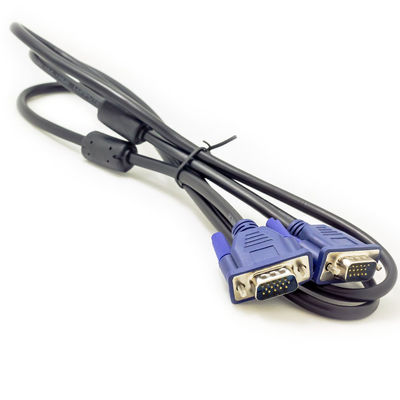

3 5 VGA Kable Rosh VGA to VGA Cable Laptop To Monitor

I'm Online Chat Now

3 5 VGA Kable Rosh VGA to VGA Cable Laptop To Monitor

3 5 VGA Kable Rosh VGA to VGA Cable Laptop To Monitor
3 5 VGA Kable Rosh VGA to VGA Cable Laptop To Monitor 3 5 VGA Kable Rosh VGA to VGA Cable Laptop To Monitor 3 5 VGA Kable Rosh VGA to VGA Cable Laptop To Monitor 3 5 VGA Kable Rosh VGA to VGA Cable Laptop To Monitor 3 5 VGA Kable Rosh VGA to VGA Cable Laptop To Monitor

Large Image :  3 5 VGA Kable Rosh VGA to VGA Cable Laptop To Monitor

Product Details:
Place of Origin: China
Brand Name: Soger
Certification: CE Rosh
Model Number: 3+5 VGA 1.5m
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiation
Packaging Details: one cable in one poly bag
Delivery Time: 5days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200000PCS/Week
Detailed Product Description
Name: Computer VGA Cable Material: CCS
Jacket: PVC Length: 1.5m Or Customized
Type: 3+5 Warranty: 12 Months
High Light:

CCS VGA to VGA Cable

,

Rosh VGA to VGA Cable

,

Rosh VGA Cable Laptop To Monitor

Soger TV Monitor VGA Cable 1.5m 3+5 Computer VGA to VGA Cable



VGA cable enables you to connect a VGA equipped computer or laptop to a monitor or projector or tv with 15 pin VGA port(also known as HD-15, DE-15) for streaming video and playing games; compatible with all VGA female port equppied devices; Please note it is VGA SVGA male to male 15 Pin cable, do not compatible with DB9 RS232 cable.
Integrated Ferrite Core: the svga cable equipped with ferrite core that could minimize crosstalk, avoid electrical radiation interference and protect against electromagnetic interference (EMI) and radio frequency interference (RFI);
High 1080P Resolution: vga to vga cable supports resolution at 800x600 (SVGA), 1024x768 (XGA), 1600x1200 (UXGA), 1080P (Full HD), 1920x1200 (WUXGA), designed for LCD and LED monitor;
Practical Mirror or Extend Mode: under mirror mode, you could view your laptop or desktop's screen on monitor or tv, increase the experience when having a presentation; under extend mode, you could connect a second monitor to computer, to experience multitask operation;
Strength Connectivity: 24K Gold-plated connectors, 28AWG pure OFC copper conductors, integrated ferrite core, all of them ensure a reliable connectivity between devices



Specifications:



Product name vga to vga 3 5 cable
Color Black Blue or customized
Material Copper+CCS
Jacket PVC
Sample Freely and freight collect
Meter 3M or customized
VGA Type 3+5 M/M M/F VGA Cable
Warranty 12 Months
Item vga to vga
Package one Pcs cable in one bags
Usage for Monitor, TV, projector, monitoring equipment, etc.



Product Description:



VGA 3+5 means that the VGA line is composed of three coaxial lines plus five single core wires (or electronic wires).

There are many kinds of VGA lines, commonly known as 3+ several.Where 3 is the coaxial line, which is used to transmit video signals, its impedance is 75 ohms.The "+ number" of the number refers to the electronic wire or single core wire.

VGA line is composed of three-color coaxial line, single core wire, filling belt (filler), aluminum foil, ground wire, copper wire isolation weaving, outer cover (skin), printing and so on.Among them:



1, trichromatic coaxial line trichromatic is red, yellow, blue, it is the transmission of red, yellow, blue three primary color video signal, its impedance is 75 ohm.Coaxial line shielding isolation is generally aluminum foil + winding copper wire, advanced line also uses aluminum foil + woven copper wire, the color of this line is not red, yellow and blue, but red, green and blue.However, the number of coaxes is certain, that is to say, the number of coaxes in all VGA lines must be 3.Of course, special exceptions, such as the line from VGA to BNC is 5 coaxes.



2, single core single core wire is usually called + a few of the several, at most +9, at least +3;So it's 3 plus 9,3 plus 3.



3. The function of the filling belt is to fix the position of the single core of the coaxial line.Because the core wires inside the VGA wire are arranged according to the established, fixed position.The main purpose of this is to solve the EMI problem.



4, aluminum foil, copper wire isolation braiding plays a shielding isolation role, shielding isolation of external signal interference and shielding isolation of internal signal leakage.Now not to save costs, many manufacturers have eliminated copper wire isolation braiding, only to retain aluminum foil;Only in the more advanced wire or the line that uses below the strict environment in the condition just has copper wire isolation braids.



5, ground grounding effect.



6. The outer core wire is protected.



7, printing marking function.Only through the authority of the certification of the line can be printed;In other words, the quality of an unprinted line is not guaranteed because it is not certified or has not been certified.



3 5 VGA Kable Rosh VGA to VGA Cable Laptop To Monitor 03 5 VGA Kable Rosh VGA to VGA Cable Laptop To Monitor 13 5 VGA Kable Rosh VGA to VGA Cable Laptop To Monitor 2



FAQ:



-Q:Can I get the quotation ?

A:Yes. We usually quote within 12 hours after we get your inquiry. If urgent, please call or Email us directly.



-Q: Can have a sample before place order?

A: Yes, sample free and freight collect. After place order, will refund the freight



-Q:Do you have stock?

A:Yes, we have stock VGA Cables of 1.5m 3m 5m 10m 15m 20m and customized fast delivery available



-Q: What is the warranty?

A: 12Month



-Q:How you test the quality of products?

A:Each cable should be tested at least 5 times before shipment. And will send the report of each test.



-Q: How about the After-sales service?

A: Will be answer within 12 hours, solution within 2 days
