IEC11801 HDPE Cat 7 Shielded Ethernet Cable SFTP OD 7.00mm

I'm Online Chat Now

IEC11801 HDPE Cat 7 Shielded Ethernet Cable SFTP OD 7.00mm

IEC11801 HDPE Cat 7 Shielded Ethernet Cable SFTP OD 7.00mm
IEC11801 HDPE Cat 7 Shielded Ethernet Cable SFTP OD 7.00mm IEC11801 HDPE Cat 7 Shielded Ethernet Cable SFTP OD 7.00mm

Large Image :  IEC11801 HDPE Cat 7 Shielded Ethernet Cable SFTP OD 7.00mm

Product Details:
Place of Origin: Guangzhou, China
Brand Name: Soger
Certification: CE, RoHS
Model Number: S-7005835S
Payment & Shipping Terms:
Minimum Order Quantity: 50 Rolls
Price: Negotiation
Packaging Details: 305 meters/ box
Delivery Time: 10 - 15 Work Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000 Box /Day
Detailed Product Description

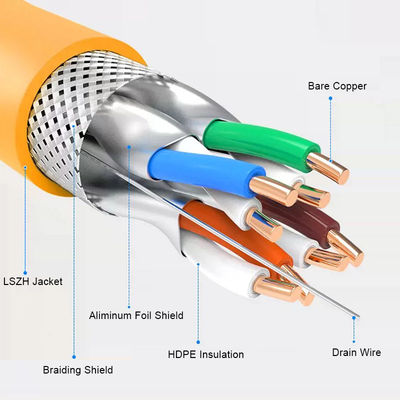

Product Name: 4Pairs SFTP Cat7 Cable Conductor: CCA/BC 0.58mm 23AWG Or Customized
Jacket: PVC/PE/LSZH Outer Diameter: 7.00mm Or Customized
Length: 305m 1000ft Type: SFTP
Number Of Conductor: 8 Insulation: HDPE
Color: Gray/Blue/Orange Or Customized Package: Wooden Reel/Pull Box
High Light:

HDPE Cat 7 Shielded Ethernet Cable

,

IEC11801 Cat 7 Shielded Ethernet Cable

,

HDPE Cat7 SFTP Cable

Ethernet Cat7 Cat6e Sftp Lan Cable Ethernet Cat 7 Ethernet Cable



Twisted pair is the latest in class 7 /F standard, which is mainly to adapt to the application and development of ten megabit Ethernet technology.But it is no longer an unshielded twisted pair, but a shielded twisted pair, so it can provide a combined attenuation-to-crostalk ratio of at least 500MHz and an overall bandwidth of 600MHz, more than twice the Class 6 and Super Class 6 lines, with a transmission rate of up to 10Gbps.In the seven types of cables, each pair of wires has a shield layer, and four pairs of wires together have a common large shield layer.Physically, the additional shielding gives the seven types of wires a larger wire diameter.
Another important difference is the ability to connect hardware. The parameters of the seven types of systems require that all line pairs provide at least 60dB of integrated near-end string winding at 600MHz of the connector.However, the super class 5 system only requires 43dB at 100MHz, and the value of class 6 at 250MHz is 46dB.



Features:



Item CAT7 Cable
Type SFTP
Conductor Bare Copper
Pair 4 Pairs
AWG 23AWG
Diameter 0.56mm
Solid/Stranded  Solid
Insulation Material PE
Shield Material Plastic
Drain Wire TC
PVC Material  LSOH
Rated Temperture -20°to +75°
Supports Transmission Digital and analogue voice, data and video signal
Reference Standard Category 7 UL444, ANSI/ TIA/ EIA 568B & ISO/ IEC11801 Standard
