Product Details:
Payment & Shipping Terms:
|
| Product Name: | 4Pairs UTP Cat5e Cable | Conductor: | CCA/BC 0.51mm 24AWG Or Customized |
|---|---|---|---|
| Jacket: | PVC/PE/LSZH | Outer Diameter: | 5.00mm Or Customized |
| Length: | 1m, 2m, 3m, 5m, 10m, 15m, 20m, ... 50m Etc | Type: | UTP |
| Number Of Conductor: | 8 | Insulation: | HDPE |
| Color: | Gray/Blue/Orange Or Customized | Package: | Wooden Reel/Pull Box |
| High Light: | Soger 2m Cat5e UTP Ethernet Cable,Mylar Spirally Cat5e UTP Ethernet Cable,Mylar Spirally UTP Cat5e Patch Cable |
||

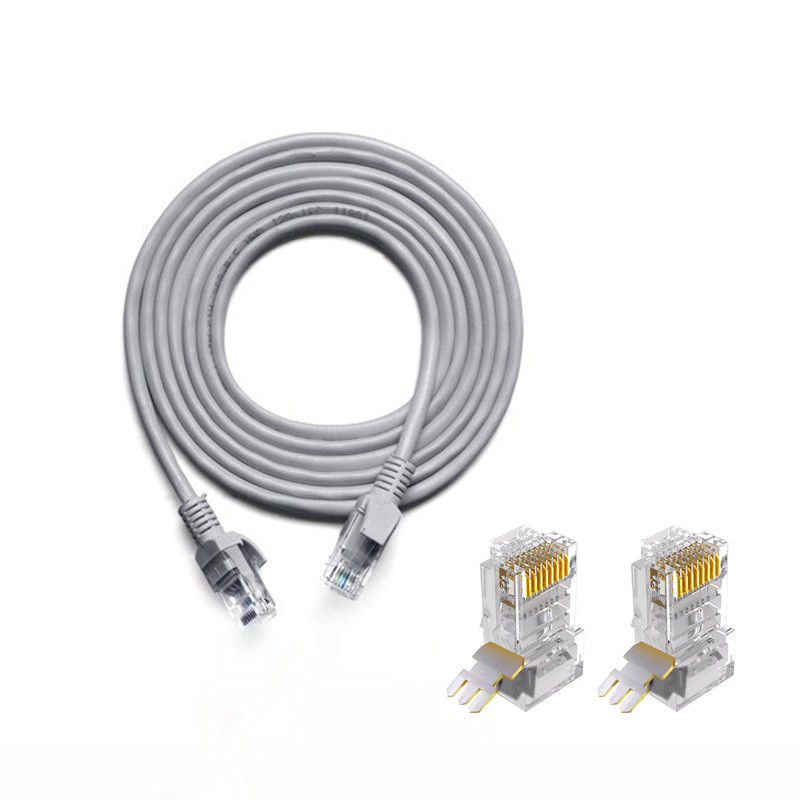

8 Core 2m Cat5e UTP Ethernet Cable Mylar Spirally Wrapped
CAT5E unshielded twisted pair wires can also provide up to 1,000 Mb/s of transmission bandwidth, but they often require the support of expensive special equipment.Therefore, it is usually only applied to 100Mb/s Fast Ethernet to achieve desktop switch to computer connection.If you are not going to upgrade your network to Gigabit Ethernet later, you may want to use super class 5 unshielded twisted pair wires in the horizontal wiring.
Specification:
| Name | indoor multi core ethernet cable 4 wire |
| Conductor Dimension | 0.51mm/24AWG |
| Conductor Material | OFC/BC/CCC/CCA/CCS |
| Insulation |
1. Water blocking swellable tape (optional) 2. HD-PE (High density polyethylene) 3. 1.0mmHD-PE(Highdensity polyethylene) |
| Number Of Cores | 8core |
| Shielding | UTP/Polyester Tape/Al Foil |
| Ripcord yes/no | Yes with Nylon |
| Jacket | PVC (Polyvinyl-Chloride)/ LSZH (Low Smoke Zero Halogen)/PE |
| Separator | Mylar Spirally Wrapped |
| Color | Different color is available |
| Operating temperature | -20 ° C - +75 ° C |
| Service Life | 20~25 years |
Selection of technical parameters:
| Type | Cat5e | Cat6 | Cat6A | Cat7 |
| Transmission rate | 100Mbps | 1000Mbps | 10Gbps | 10Gbps |
| Broadband frequency | 155MHz | 250MHz | 500MHz | 600MHz |
|
Transmission distance |
100M | 100M | 100M | 100M |
|
Shield/ Unshield |
UTP/FTP/ SFTP |
UTP/FTP/ SFTP |
UTP/FTP | SFTP |
| Conductor | 4Pairs | 4Pairs | 4Pairs | 4Pairs |
| Application | Home/Small Office/etc. | Home/Small Office/etc. | Project/high-speed transmission/etc | Project/high-speed transmission/etc. |
